โก GMAX Ultra Electric Scooter โ Long-Range Commuting, Refined
Go Farther. Ride Smarter. Commute With Confidence.

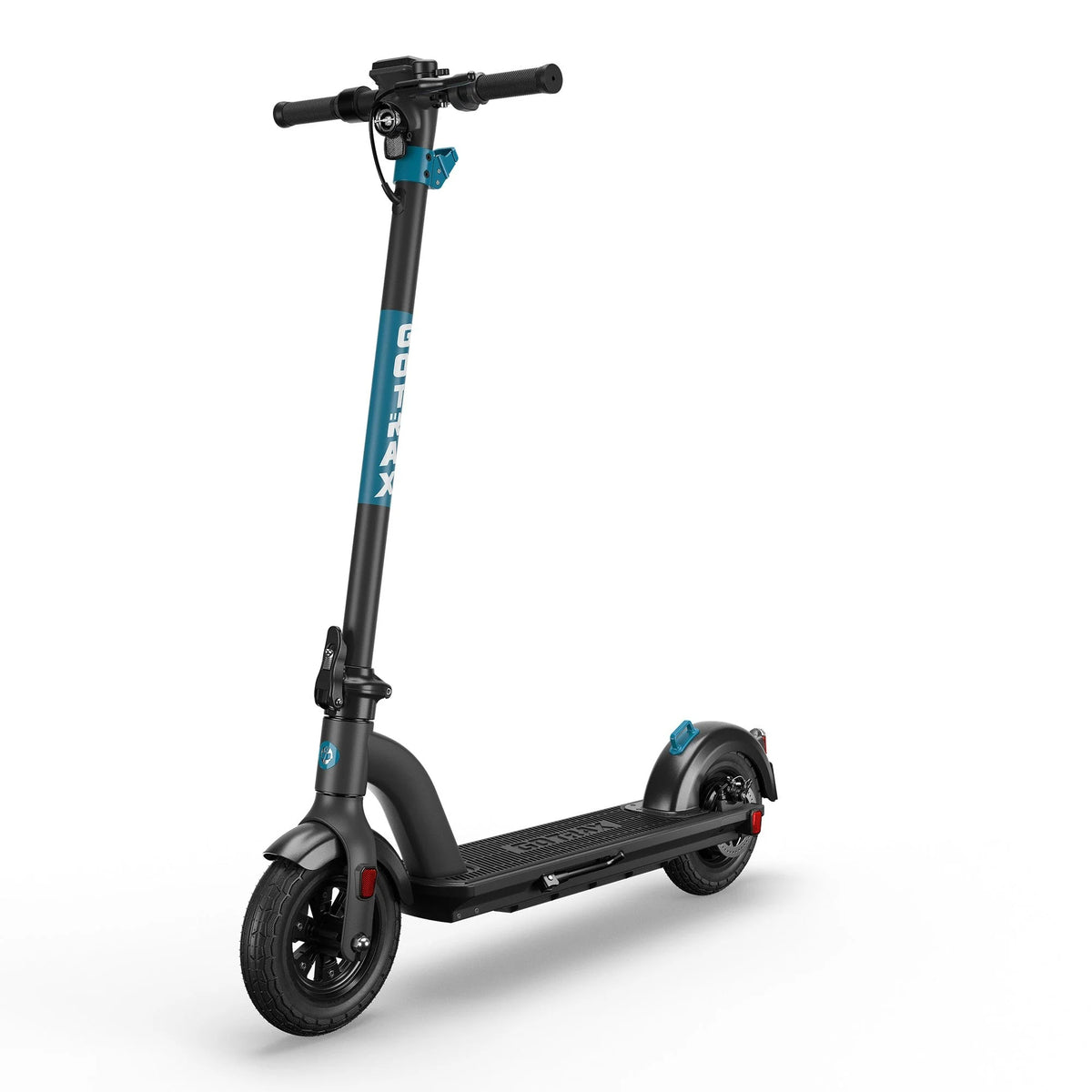

The GOTRAX GMAX Ultra Electric Scooter is built for riders who want substantial range, dependable commuter performance, and a comfortable full-size platform without stepping into an oversized performance scooter.
With a 500W rear-wheel motor, 36V 17.5Ah LG battery, up to 45 miles of claimed range, and a 20 MPH top speed, the GMAX Ultra is designed for daily commuting, city riding, errands, and longer recreational trips.
๐ Built for Real-World Commuting
Whether you're heading to work, crossing the city, or taking the long way home, the GMAX Ultra combines practical range with a comfortable riding setup.
๐ Up to 45 Miles of Range
The 36V 17.5Ah LG lithium battery provides a substantial 630Wh energy capacity and is rated for up to 45 miles per charge under favorable riding conditions.
โก 500W Rear-Wheel Motor
The rear-wheel-drive 500W motor provides responsive acceleration and helps improve traction and hill-climbing performance compared with a front-wheel-drive layout.
๐ Large 10-Inch Pneumatic Tires
The 10-inch air-filled tires provide additional cushioning over typical urban imperfections such as cracks, rough pavement, and small bumps.
๐งณ One-Touch Folding
The folding frame makes the GMAX Ultra easier to store at home, in a vehicle, or in other compact spaces.
๐ Integrated Security
A built-in locking system and digital display security features provide additional protection when the scooter is parked.
๐ฅ๏ธ Digital Display
The LED display keeps key riding information visible, including speed, distance, and battery level.
โญ Key Features
โก 500W Rear Motor
A 500W rear-wheel motor gives the GMAX Ultra the power needed for everyday acceleration and moderate inclines.
Why it matters: Rear-wheel drive can provide stronger traction during acceleration and helps the scooter handle hills more effectively.
๐ 36V 17.5Ah LG Battery
The scooter uses a 36V 17.5Ah LG battery, rated at approximately 630Wh.
Why it matters: The larger battery is the foundation of the GMAX Ultra's long-distance commuter design.
๐ฃ๏ธ Up to 45-Mile Range
GOTRAX rates the GMAX Ultra for up to 45 miles per charge.
Actual range varies with rider weight, speed, terrain, temperature, tire pressure, wind, riding mode, and other conditions.
๐ 20 MPH Top Speed
The GMAX Ultra reaches a claimed 20 MPH maximum speed.
Always follow applicable local speed limits and electric-scooter regulations.
๐ 10-Inch Pneumatic Tires
The 10-inch pneumatic tires are designed to absorb some road vibration while maintaining a stable ride.
๐ Dual Braking System
The scooter uses:
-
Front electromagnetic brake
-
Rear disc brake
This combination provides controlled braking from both the front and rear systems.
๐ Integrated Lock
The GMAX Ultra includes a built-in/manual locking system designed to help deter unauthorized use when parked.
๐ฆ Folding Design
The one-touch folding mechanism makes the scooter easier to store and transport.
๐ก๏ธ UL 2272 Certified
The product page states that the GMAX Ultra is UL 2272 safety certified.
๐ 2-Year Warranty
GOTRAX states that its adult eScooters and eBikes are covered for 2 years against manufacturer defects, subject to its warranty terms.
๐ Full Technical Specifications
| Specification | GMAX Ultra |
|---|---|
| Motor | 500W |
| Motor Position | Rear wheel |
| Motor Configuration | Single motor |
| Motor Nominal Power | 500W |
| Peak Motor Power | Not published by GOTRAX |
| Torque | Not published by GOTRAX |
| Top Speed | 20 MPH |
| Maximum Range | Up to 45 miles |
| Battery Voltage | 36V |
| Battery Capacity | 17.5Ah |
| Battery Energy | 630Wh |
| Battery Brand | LG |
| Battery Type | Lithium |
| Brakes | Front electromagnetic + rear disc |
| Suspension | None listed / no suspension |
| Tires | 10-inch pneumatic |
| Tire Type | Air-filled / pneumatic |
| Payload Capacity | 220 lbs |
| Frame Material | Not published by GOTRAX |
| Scooter Weight | Approximately 46 lbs |
| Dimensions | Approximately 42.3" ร 17.9" ร 47.4" |
| Folding Design | One-touch folding |
| Display | LED digital display |
| Security | Integrated/manual lock + digital code feature |
| Safety Certification | UL 2272 |
| Charging Time | Approximately 4โ5 hours according to GOTRAX published guidance |
| Charger | 42V 3A replacement charger specification |
| Warranty | 2 years |
| Color | Black |
| Recommended Rider Type | Experienced adult e-scooter riders / commuters |
Important specification note: GOTRAX's current product listing identifies the motor as 500W, while an older GOTRAX article lists a previous 350W motor specification. This description uses the current 500W specification shown on the supplied product page and current GOTRAX parts listings.
GOTRAX's current parts catalog also identifies a 36V 17.5Ah GMAX Ultra battery and a 500W motor assembly for the model.
โก GMAX Ultra Performance
500W Power + 630Wh Battery
The GMAX Ultra pairs its 500W rear-wheel motor with a 36V 17.5Ah / 630Wh LG battery.
That combination is aimed at riders who prioritize range and practical commuter performance rather than extreme top speed.
Performance at a Glance
Motor: 500W
Drive: Rear wheel
Battery: 36V 17.5Ah LG
Energy: 630Wh
Top Speed: 20 MPH
Claimed Range: Up to 45 miles
Payload: 220 lbs
Tires: 10-inch pneumatic
Brakes: Front electromagnetic + rear disc
๐๏ธ Hill Climbing
The rear-mounted 500W motor is positioned to improve traction during acceleration and hill climbs. GOTRAX specifically describes the rear-wheel configuration as improving starting acceleration and hill-climbing ability.
However, GOTRAX does not publish a specific maximum hill grade percentage for the GMAX Ultra, so no unsupported climbing percentage is claimed here.
๐ Terrain
The GMAX Ultra is best suited to:
-
City streets
-
Paved roads
-
Bike paths where legally permitted
-
Sidewalks where legally permitted
-
Urban commuting
-
Smooth-to-moderately rough pavement
-
Recreational paved riding
The 10-inch pneumatic tires help absorb vibration from ordinary road imperfections.
This is primarily a commuter scooter, not an off-road scooter.
๐ GMAX Ultra vs. Popular Competitors
| Specification | GOTRAX GMAX Ultra | NIU KQi3 Max | Segway MAX G2 |
|---|---|---|---|
| Motor Rated/Nominal | 500W | 450W | 450W |
| Peak/Max Power | Not published | 900W | 1,000W |
| Motor Drive | Rear | Not specified in supplied comparison data | Rear |
| Top Speed | 20 MPH | 20 MPH | 20 MPH factory / up to 22 MPH via app |
| Range | Up to 45 mi | Up to 40 mi / 40.4 mi | Up to 43 mi theoretical |
| Battery Voltage | 36V | 48V | 36V |
| Battery Capacity | 17.5Ah | 13Ah | 15.3Ah |
| Battery Energy | 630Wh | 608.4Wh | 551Wh |
| Charge Time | Approx. 4โ5h | 8h | Approx. 6h |
| Tires | 10" pneumatic | 9.5" ร 2.5" self-healing pneumatic | 10" tubeless self-sealing |
| Brakes | Front electromagnetic + rear disc | Dual disc + regenerative | Front drum + rear electronic |
| Suspension | None listed | None | Front hydraulic + rear suspension |
| Max Payload | 220 lbs | 265 lbs | 265 lbs |
| Weight | Approx. 46 lbs | 46.5 lbs | 53.5 lbs |
| Water Resistance | Not specified by supplied GOTRAX listing | IP54 | IPX5 |
| Hill Grade | Not published | 25% | Approx. 22% |
| Frame Material | Not published | Aluminum | High-strength steel |
| App Connectivity | Not specified | Bluetooth/app | Segway-Ninebot app |
| Folding | One-touch | 2-step | Folding design |
| Safety Certification | UL 2272 | Not included in cited spec | Not included in cited spec |
NIU officially lists the KQi3 Max at 450W rated / 900W max power, 48V 13Ah, 608.4Wh, 20 MPH, 40 miles, 8-hour charging, 9.5-inch tires, 265-lb payload and IP54.
Segway lists the MAX G2 with 450W nominal / 1,000W max power, 36V 15.3Ah, 551Wh, up to 43 miles theoretical range, 20 MPH factory speed or 22 MPH with higher-speed mode enabled, 22% maximum slope, 10-inch self-sealing tires, 265-lb payload and IPX5.
Why Choose the GMAX Ultra?
The GMAX Ultra stands out with a 630Wh battery, up to 45-mile claimed range, 500W motor, and approximately 46-lb weight.
For riders who want a long-range commuter without moving into a much heavier premium scooter, that combination makes the GMAX Ultra an attractive option.
๐ก๏ธ Built for Confidence
๐ Secure Checkout
Complete your purchase through a secure checkout environment with standard payment protection.
๐ฆ Shipping
The supplied GOTRAX listing advertises free shipping. GOTRAX states an average shipping time of 3โ5 business days on its current site. Actual delivery times can vary by destination and carrier.
๐ฌ Customer Support
GOTRAX states that its customer service team is based in Dallas, Texas and is available MondayโFriday, 8:30 AMโ5:00 PM.
๐ Quality & Safety
The GMAX Ultra is listed as UL 2272 certified, and the product uses an LG battery pack.
๐ก๏ธ Warranty
GOTRAX states that adult eScooters and eBikes receive a 2-year warranty against manufacturer defects, subject to applicable warranty terms.
โฉ๏ธ Returns
The supplied product information lists a 14-day return policy, while GOTRAX's current site separately advertises a 31-day returns policy. Check the applicable return terms for the exact purchase before ordering.
โ Frequently Asked Questions
๐ How long does the GMAX Ultra take to charge?
GOTRAX guidance indicates approximately 4โ5 hours for its e-scooters under normal charging conditions. Older GMAX Ultra documentation has also listed approximately 6 hours, so charging time can vary by charger, battery state, and product revision.
๐ How fast does the GMAX Ultra go?
The rated maximum speed is 20 MPH.
Local laws may restrict electric-scooter speeds, so always follow the regulations where you ride.
๐ฃ๏ธ How far can it travel?
GOTRAX advertises up to 45 miles per charge.
Actual range depends heavily on rider weight, speed, terrain, temperature, tire pressure, wind, and riding conditions.
๐ค What rider weight can it support?
The stated maximum payload is 220 lbs.
This includes the rider and any carried load.
๐ Is it suitable for taller riders?
The GMAX Ultra has a full-size commuter design and is approximately 47.4 inches tall according to GOTRAX's published dimensions. Rider comfort depends on body proportions and riding position.
๐ Can it handle rough roads?
The 10-inch pneumatic tires help absorb road vibration and small bumps. The scooter is designed primarily for urban commuting and paved riding rather than technical off-road terrain.
๐ฆ Is the GMAX Ultra waterproof?
GOTRAX's supplied GMAX Ultra specifications do not provide a specific IP water-resistance rating. Therefore, it should not be marketed as waterproof.
Avoid riding or storing the scooter in heavy rain or standing water unless the applicable manufacturer documentation specifically permits it.
๐ชช Does it require a license?
Requirements vary by state, city, and local jurisdiction. Electric-scooter laws can cover speed limits, age requirements, helmet use, roadway access, registration, and licensing. Check your local regulations before riding.
๐ง Does it require assembly?
The supplied product information describes assembly as straightforward, with the handlebar/display attached to the top of the tiller.
๐ฆ What's in the Box?
Typical package contents should include:
-
GMAX Ultra Electric Scooter
-
Battery-equipped scooter assembly
-
Charging equipment
-
Handlebar/display components
-
Required assembly hardware
-
User documentation/manual
Package contents can vary by production revision or seller. Verify the included accessories on the shipment documentation before listing additional items as included.
๐ Why the GMAX Ultra?
If your priority is a long-range commuter scooter, the GMAX Ultra brings together the specifications that matter most:
500W rear-wheel motor
36V 17.5Ah LG battery
630Wh battery capacity
Up to 45-mile claimed range
20 MPH top speed
10-inch pneumatic tires
Front electromagnetic + rear disc brakes
220-lb payload
One-touch folding
Integrated locking system
UL 2272 certification
2-year warranty
It's a practical choice for riders who want more range without needing an extreme high-speed scooter.
๐ Ready for Longer Commutes?
Ride More. Charge Less. Go Further.
The GOTRAX GMAX Ultra Electric Scooter combines a 500W rear motor, 630Wh LG battery, large 10-inch pneumatic tires, and up to 45 miles of claimed range in a commuter-focused folding design.
Choose the GMAX Ultra when long-range everyday mobility is the priority.
