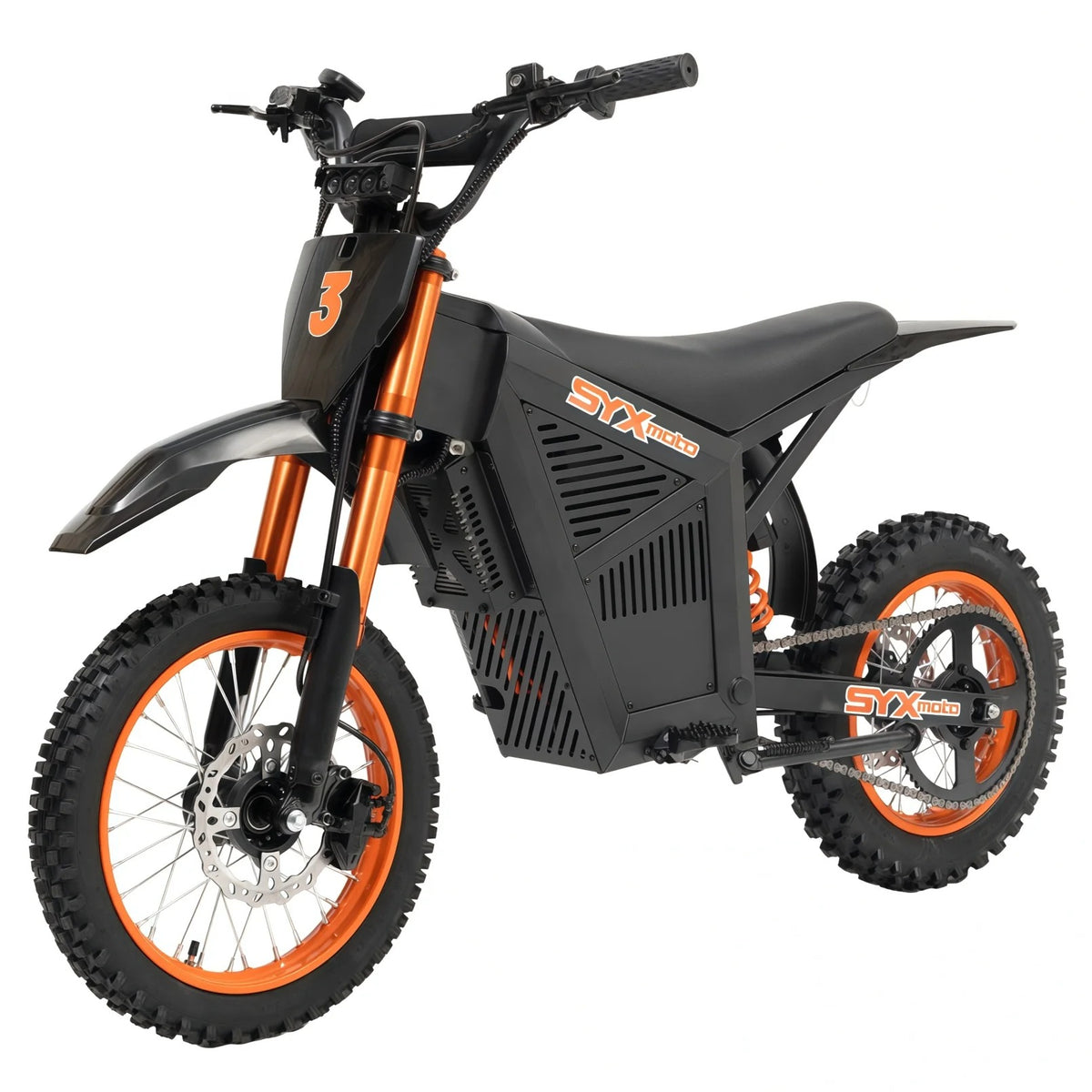

SYX MOTO ARC 3000W Peak Electric Dirt Bike
48V Mid-Drive Off-Road Performance • 36 MPH • 45-Mile Range
⚡ POWERFUL. CONTROLLED. BUILT FOR THE TRAIL.
Meet the SYX MOTO ARC — a purpose-built electric dirt bike designed for riders who want serious off-road performance without the noise and fuel of a traditional gas-powered bike.
With a 48V 1300W mid-drive motor producing 3000W peak power, 130 Nm of peak torque, a 36 MPH top speed, and up to 45 miles of claimed maximum range, the ARC is engineered for private-property trails, dirt roads, grass, gravel, and recreational off-road riding.
🏁 Built for Riders Who Want More
The ARC combines strong electric performance with a motorcycle-inspired chassis and suspension system.
🔥 3000W Peak Power
The 1300W rated / 3000W peak mid-drive motor delivers strong acceleration and climbing performance while the mid-drive layout helps keep the bike's weight centered.
⚡ 130 Nm Peak Torque
With 130 Nm of peak torque, the ARC is designed to deliver strong low-speed pulling power for climbs, uneven ground, and trail riding.
🔋 48V 20.4Ah Lithium-Ion Battery
The removable 48V 20.4Ah lithium-ion battery stores approximately 0.98 kWh of energy and is built with 18650 cells.
The battery is removable, making charging and storage more convenient.
🏔️ Up to 45 Miles of Maximum Range
The manufacturer rates the ARC for a maximum range of up to 45 miles on a charge.
Actual range will vary with rider weight, terrain, speed, temperature, riding mode, tire pressure, and other conditions.
🛞 14" Front / 12" Rear Off-Road Tires
The ARC uses aggressive off-road tires with a 14-inch front wheel and 12-inch rear wheel for a planted feel on dirt, grass, gravel, and other suitable off-road surfaces.
🛑 Hydraulic Disc Brakes
Large-caliper hydraulic disc brakes are fitted front and rear, giving the ARC controlled braking performance for changing trail conditions.
🏆 Motorcycle-Style Suspension
The front uses an inverted dual-crown suspension, while the rear uses a spring shock absorber.
Together, the suspension system is designed to absorb bumps, ruts, rocks, and uneven terrain.
✨ Key Features
⚡ 1300W Rated / 3000W Peak Mid-Drive Motor
The ARC's 48V 1300W mid-drive motor can deliver 3000W peak power when conditions demand additional performance.
Why it matters: Mid-drive placement helps centralize the drivetrain and weight for more predictable handling on uneven terrain.
💪 130 Nm Peak Torque
The ARC produces up to 130 Nm of peak torque.
Why it matters: Strong torque is useful when starting from low speeds, climbing inclines, and navigating loose or uneven surfaces.
🔋 Removable 48V 20.4Ah Battery
The lithium-ion battery uses 18650 cells, operates at 48V, has 20.4Ah capacity, and stores 0.98 kWh.
Why it matters: The removable design makes charging and storage easier when you don't want to move the entire bike.
🏔️ 30° Climbing Ability
The manufacturer rates the ARC for a 30° climbing ability.
Why it matters: The combination of 130 Nm torque, mid-drive power delivery, and off-road tires gives the ARC strong capability for suitable inclines.
Actual climbing performance depends on rider weight, surface conditions, battery charge, tire traction, and riding technique.
🛞 Inverted Dual-Crown Front Suspension
The front suspension uses an inverted dual-crown design.
The rear uses a spring shock absorber.
Why it matters: Front and rear suspension help keep the wheels in contact with uneven surfaces while improving comfort and control.
🛑 Front & Rear Hydraulic Disc Brakes
The ARC features hydraulic disc brakes with large calipers on both the front and rear.
Why it matters: Hydraulic braking provides controlled braking input and is well suited to an off-road vehicle capable of reaching 36 MPH.
🎛️ Three Speed Modes
The ARC includes 3 selectable speed modes controlled through the LCD display.
This gives riders the ability to select a more manageable riding mode before progressing to higher speeds.
🔄 Electronic Reverse Assist
Electronic reverse assist makes maneuvering the bike easier when repositioning it in a garage, driveway, paddock, or private riding area.
💡 12W LED Headlight
A 12W LED headlight provides forward illumination for suitable low-light off-road riding.
Always follow local rules regarding nighttime operation.
💧 IPX6 Water-Resistant Rating
The ARC carries an IPX6 water-resistant rating.
This means the bike is designed to handle water projected against the enclosure under the applicable rating conditions.
Important: IPX6 does not mean waterproof for submersion. Do not submerge the bike or pressure-wash it.
🚀 Performance
Motor
Rated Power: 1300W
Peak Power: 3000W
Motor: 48V 1300W Mid-Drive
Peak Torque: 130 Nm
Controller: 48V 55A
The ARC's 1300W rated / 3000W peak motor provides a balance between controlled everyday trail riding and stronger bursts of power when accelerating or climbing.
Speed
Top Speed: 58 km/h / 36 MPH
The ARC features 3 speed modes, allowing riders to choose a more controlled setting before using the bike's higher-speed capability.
Battery & Range
Battery: Lithium-ion, 18650 cells
Voltage: 48V
Capacity: 20.4Ah
Energy: 0.98 kWh
Battery: Removable
Maximum Claimed Range: 45 miles
Charging Time: Approximately 6 hours
Charger: 48V 2A, CE / UL certified
The 45-mile maximum range is a manufacturer claim under specified conditions. Real-world range can be substantially different depending on terrain, speed, rider weight, temperature, riding mode, tire pressure, and other factors.
Hill Climbing
Rated Climbing Ability: 30°
The combination of 130 Nm peak torque, a 48V mid-drive motor, and off-road tires makes the ARC suitable for demanding recreational terrain within its intended use.
Terrain Capability
Designed for:
-
🏞️ Dirt trails
-
🌿 Grass
-
🪨 Gravel
-
🏜️ Suitable off-road terrain
-
⛰️ Inclines
-
🏕️ Private-property recreational riding
The ARC is not designed or sold as a street-legal vehicle.
📋 Full Technical Specifications
| Specification | SYX MOTO ARC |
|---|---|
| Model | ARC |
| Motor Rated Power | 1300W |
| Motor Peak Power | 3000W |
| Motor Configuration | Single Mid-Drive Motor |
| Motor Type | 48V 1300W Mid-Drive Motor |
| Peak Torque | 130 Nm |
| Top Speed | 58 km/h / 36 MPH |
| Maximum Range | 45 miles |
| Climbing Ability | 30° |
| Battery Type | Lithium-Ion, 18650 Cells |
| Battery Voltage | 48V |
| Battery Capacity | 20.4Ah |
| Battery Energy | 0.98 kWh |
| Battery | Removable |
| Charging Time | 6 hours |
| Charger | 48V 2A, CE / UL Certified |
| Controller | 48V 55A |
| Throttle | Twist Throttle, Right Half-Grip |
| Front Suspension | Inverted Dual-Crown Suspension |
| Rear Suspension | Spring Shock Absorber |
| Frame Material | Steel |
| Transmission | Chain Drive |
| Fenders | Included |
| Front Brake | Hydraulic Disc Brake, Large Caliper |
| Rear Brake | Hydraulic Disc Brake, Large Caliper |
| Front Wheel | 14 Inch |
| Rear Wheel | 12 Inch |
| Tire Type | Off-Road Tires |
| Overall Height | 105 cm / 41.34" |
| Overall Length | 152 cm / 59.84" |
| Handlebar Width | 76 cm / 29.92" |
| Seat Height | 76 cm / 29.92" |
| Wheelbase | 103.5 cm / 40.75" |
| Ground Clearance | 230 mm / 9.1" |
| Product Dimensions | 151.3 × 71.5 × 105 cm |
| Packing Dimensions | 128 × 27.6 × 74.5 cm |
| Net Weight With Battery | 55 kg / 121 lb |
| Gross Weight With Battery | 60 kg / 132 lb |
| Maximum Load Capacity | 265 lb / 120 kg |
| Recommended Rider Height | 120–180 cm / 3'11"–5'11" |
| Recommended Age | 12+ |
| Riding Modes | 3 Speed Modes |
| Display | LCD Display With Ignition Switch |
| Headlight | 12W LED |
| Reverse | Electronic Reverse Assist |
| Water Resistance | IPX6 |
| Intended Use | Off-Road |
| Street Legal | No — Off-Road Only |
🏆 ARC vs. Other Electric Dirt Bikes
The ARC sits between smaller recreational electric dirt bikes and substantially more expensive high-performance electric motorcycles.
| Specification | SYX MOTO ARC | Razor MX650 | Tuttio Soleil01 |
|---|---|---|---|
| Motor | 1300W rated / 3000W peak | 650W | 2000W class |
| Motor Type | 48V Mid-Drive | Chain-Driven Rear-Wheel Drive | Electric |
| Battery | 48V 20.4Ah Li-Ion | 36V 12Ah sealed lead-acid | 48V 21Ah Li-Ion |
| Battery Energy | 0.98 kWh | 0.432 kWh | 1.008 kWh |
| Top Speed | 36 MPH | 17 MPH | Up to 37 MPH |
| Claimed Range/Runtime | Up to 45 miles | Up to 40 minutes | Up to 45 miles |
| Torque | 130 Nm peak | Not published | Published figures vary by source |
| Climbing | 30° | Not specified | Not consistently published |
| Front Suspension | Inverted dual-crown | Double-crown / front suspension | Front suspension |
| Rear Suspension | Spring shock absorber | Rear suspension | Rear suspension |
| Front Brake | Hydraulic disc | Dual disc | Disc/hydraulic depending on configuration |
| Rear Brake | Hydraulic disc | Dual disc | Disc/hydraulic depending on configuration |
| Front Wheel | 14" | 16" | 14" |
| Rear Wheel | 12" | 14" | 12" |
| Frame | Steel | Steel | Aluminum alloy |
| Maximum Load | 265 lb / 120 kg | 220 lb / 100 kg | Published figures vary by configuration |
| Charging Time | 6 hours | Up to 12 hours | Approximately 6–7 hours |
| Weight | 121 lb / 55 kg | 94.5 lb / 42.9 kg | Approximately 105 lb |
| Riding Modes | 3 | Variable-speed throttle | Configuration dependent |
| Water Rating | IPX6 | Not specified | Configuration dependent |
| Intended Use | Off-road | Off-road | Off-road/recreational |
Why the ARC stands out
The ARC offers a combination of specifications that make it particularly interesting for riders looking for a more capable recreational dirt bike:
3000W peak power + 130 Nm torque + 36 MPH + up to 45 miles + 48V 20.4Ah removable battery + hydraulic brakes + front/rear suspension.
The Razor MX650 is significantly slower and uses a smaller 36V lead-acid battery, while the ARC uses a removable 48V 20.4Ah lithium-ion battery and offers substantially more published power and speed.
Competitor specifications can vary by model year and configuration, so compare the exact version before purchasing.
🛡️ Built for Confidence
Professional Assembly Required
The ARC requires professional assembly before first use.
Proper assembly, inspection, and adjustment should be completed before riding.
Always inspect:
-
Brake operation
-
Throttle operation
-
Chain tension
-
Fasteners
-
Tire condition and pressure
-
Suspension
-
Battery connections
-
Controls
📦 What's in the Box
The manufacturer does not publish a complete itemized box-content list on the product specification page.
The confirmed supplied equipment/specification includes:
-
SYX MOTO ARC electric dirt bike
-
Removable 48V battery
-
48V 2A CE / UL-certified charger
-
Included fenders
-
LCD display
-
Owner's manual/resources
Professional assembly is required before first use.
🚚 Shipping
The manufacturer states that the ARC ships to the 48 continental United States.
Published processing time is generally 1–2 business days, with published shipping time generally 1–5 days.
Actual delivery timing may vary by destination, carrier, inventory, and circumstances outside the seller's control.
🔒 Secure Checkout
Your order should be completed through a secure checkout environment.
For your protection, always verify the order details, shipping address, selected configuration, and payment information before completing your purchase.
🔧 Quality Inspection
Each ARC should be inspected before riding.
Because this is an off-road vehicle capable of 36 MPH, proper assembly and pre-ride inspection are especially important.
🛠️ Warranty
Manufacturer-published warranty coverage includes:
-
Frame: 2 years
-
Battery: 1 year
-
Motor: 1 year
-
Controller: 1 year
-
Charger: 6 months
-
Other electrical parts: 3 months
-
Wear-and-tear parts: Not covered
Warranty coverage is for manufacturing defects under normal off-road use.
The manufacturer excludes items such as normal wear and tear, crash/impact damage, water damage from submersion or pressure washing, unauthorized modifications, cosmetic damage, and labor charges.
Keep the original packaging and proof of purchase for warranty claims.
❓ Frequently Asked Questions
1. How long does the ARC take to charge?
The manufacturer lists approximately 6 hours charging time using the included 48V 2A charger.
2. How fast is the SYX MOTO ARC?
The ARC has a published top speed of 36 MPH / 58 km/h.
It also has 3 selectable speed modes through the LCD display.
3. How far can the ARC travel on one charge?
The manufacturer lists a maximum range of up to 45 miles.
Actual range depends on speed, terrain, rider weight, temperature, riding mode, tire pressure, battery condition, and other conditions.
4. What size rider fits the ARC?
The manufacturer recommends riders approximately 120–180 cm (3'11"–5'11") tall.
The maximum load capacity is 265 lb / 120 kg.
5. Can the ARC handle hills?
The ARC is rated for a 30° climbing ability.
Its 130 Nm peak torque, 1300W rated / 3000W peak motor, and off-road tires are designed to provide strong climbing capability on suitable terrain.
Actual hill performance depends heavily on surface conditions, rider weight, battery charge, and traction.
6. Can I ride the ARC on pavement?
The ARC is intended for off-road use only and is not street legal according to the manufacturer.
Check your local laws before operating the vehicle.
7. Is the ARC waterproof?
The ARC has an IPX6 water-resistant rating.
However, it should not be submerged or pressure-washed. Water damage from submersion or pressure washing is specifically excluded from the manufacturer's warranty.
8. Does the ARC require assembly?
Yes.
Professional assembly is required before first use.
9. Does the ARC have hydraulic brakes?
Yes.
It uses hydraulic disc brakes with large calipers on both the front and rear.
10. Does the battery come out?
Yes.
The 48V 20.4Ah lithium-ion battery is removable.
11. What type of motor does the ARC use?
The ARC uses a 48V 1300W mid-drive motor with 3000W peak power and 130 Nm peak torque.
12. What type of tires does it use?
The ARC uses off-road tires on a 14-inch front wheel and 12-inch rear wheel.
⚠️ Important Safety Information
The SYX MOTO ARC is an off-road recreational vehicle.
It is not street legal according to the manufacturer.
Always wear appropriate protective equipment, including:
-
DOT-compliant helmet
-
Goggles
-
Gloves
-
Long sleeves
-
Long pants
-
Over-the-ankle boots
Never exceed the 265 lb / 120 kg maximum load capacity.
Minors should ride only under appropriate adult supervision, and riders should follow all applicable local laws and safety requirements.
🏁 Ready for the Trail?
SYX MOTO ARC — 3000W Peak Electric Dirt Bike
With a 1300W rated / 3000W peak mid-drive motor, 130 Nm peak torque, 48V 20.4Ah removable lithium-ion battery, 36 MPH top speed, up to 45-mile maximum range, 30° climbing capability, hydraulic front and rear brakes, and front/rear suspension, the ARC delivers a serious off-road package in a compact motorcycle-style platform.
Ride with control. Explore with confidence.
Choose your ARC configuration and get ready for your next off-road adventure.
