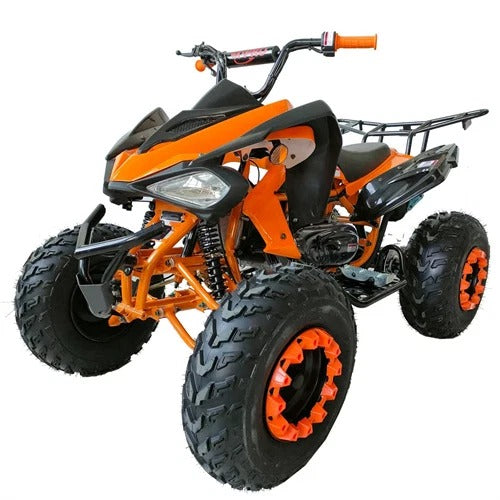

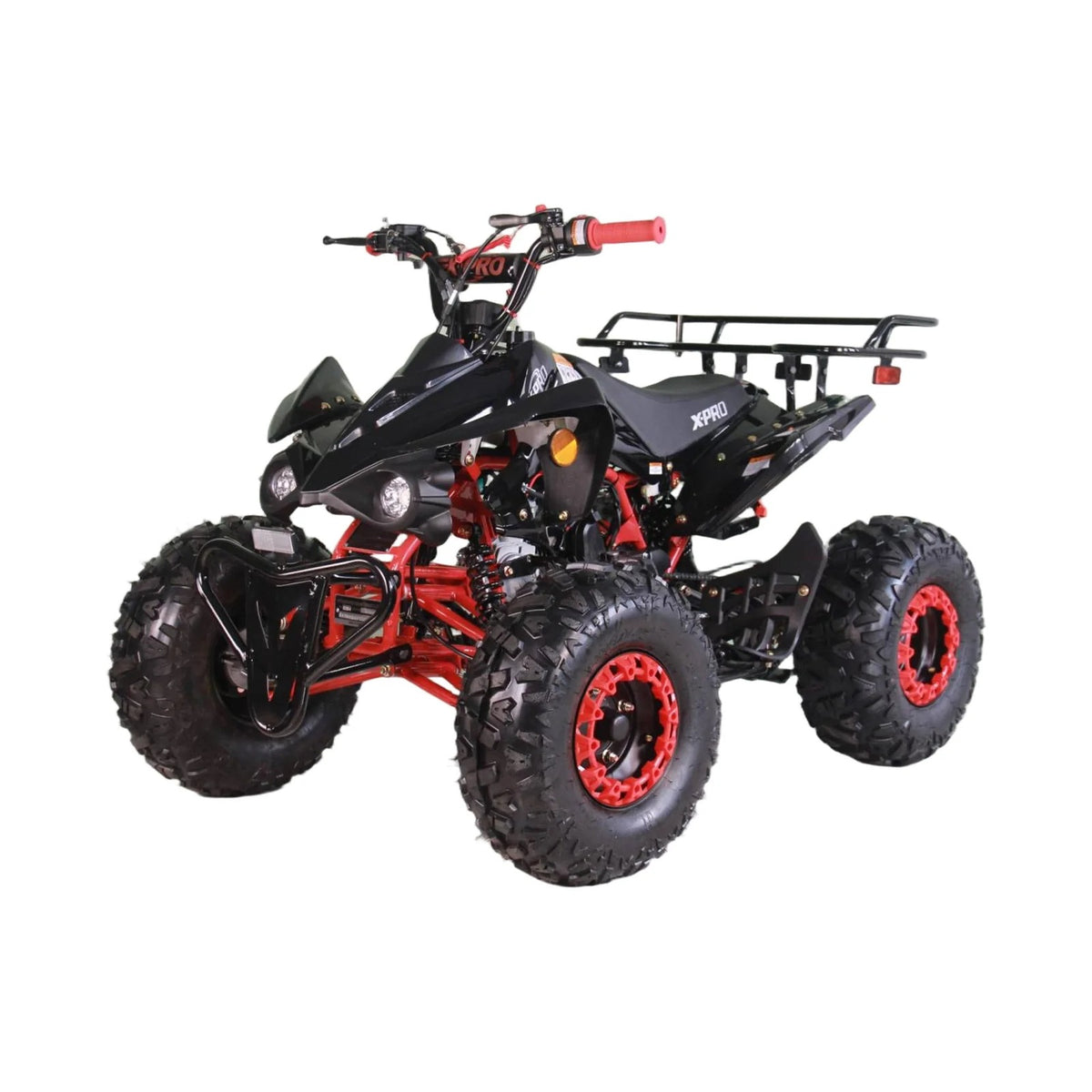

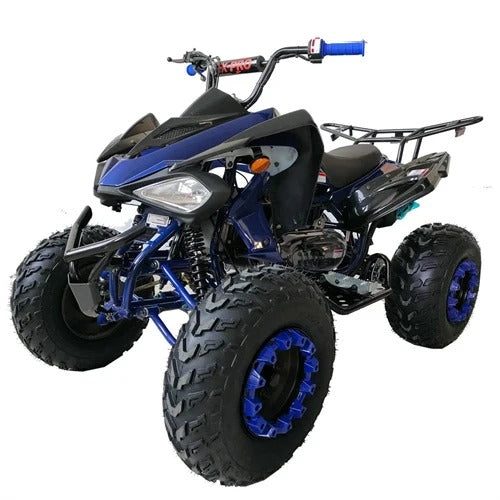

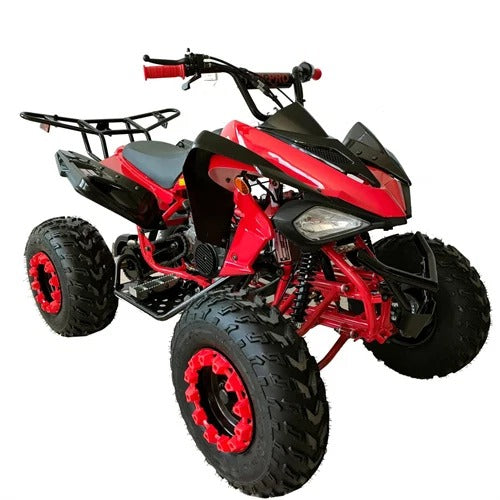

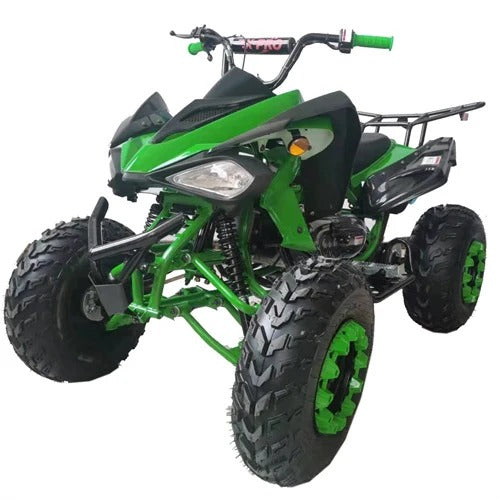

🐆 X-PRO PANTHER 200CC SPORTS ATV
BIG-BORE PERFORMANCE. AUTOMATIC CONTROL. FULL-SIZE OFF-ROAD PRESENCE.
The X-PRO Panther 200cc Sports ATV combines a 177.3cc single-cylinder, 4-stroke, air-cooled engine with an automatic transmission with reverse, large 23×7-10 front and 22×10-10 rear tires, LED lighting, front and rear cargo capability, and a full-size chassis.
With a published 40+ MPH top speed, 33-inch seat height, 4.33-inch minimum ground clearance, and 43.5-inch wheelbase, the Panther is built for adult-sized recreational riding on appropriate off-road terrain.
⚡ BUILT AROUND A 177.3cc ENGINE
🔥 177.3cc 4-STROKE POWER
The Panther uses a:
177.3cc
Single-cylinder
4-stroke
Air-cooled gasoline engine
The built-in balance shaft is designed to reduce vibration from unbalanced engine forces, helping make the ride smoother.
The current manufacturer page does not publish a horsepower, kW, or torque figure, so those figures are intentionally not claimed here.
⛽ GASOLINE POWER
This is a gasoline-powered ATV—not an electric ATV.
There is:
-
No propulsion battery
-
No electric range rating
-
No EV charging time
The supplied 12V/9Ah battery is the starter battery.
🔄 AUTOMATIC TRANSMISSION + REVERSE
One of the Panther's biggest advantages is its:
AUTOMATIC TRANSMISSION WITH REVERSE
No manual clutch operation is required.
And when you need to back out of a tight spot:
Select Reverse and move backward without leaving the ATV.
That makes maneuvering around property, trails and loading areas much easier.
🚀 40+ MPH ADVERTISED TOP SPEED
The Panther is rated at:
40+ MPH
Actual speed depends on:
-
Rider weight
-
Terrain
-
Road/surface conditions
-
Inclines
-
Riding conditions
The manufacturer's specification explicitly states that the 40+ MPH figure varies according to rider weight and road conditions.
🛞 BIG 23"/22" OFF-ROAD TIRES
The Panther uses large ATV tires:
FRONT
23×7-10
REAR
22×10-10
The larger tire package gives the ATV a substantial stance and contributes to its 4.33-inch minimum ground clearance.
These tires are designed for appropriate off-road riding rather than street use.
🏁 FULL-SIZE CHASSIS
The Panther measures:
68" LONG
41" WIDE
43" TALL
Its:
43.5" WHEELBASE
and:
33" SEAT HEIGHT
create a full-size riding position with additional room compared with smaller youth ATVs.
🏁 FRONT + REAR SUSPENSION
The current manufacturer page does not provide a detailed suspension specification such as shock length or spring rate.
It does identify the Panther as a full-size ATV with a large chassis and 4.33-inch minimum ground clearance.
⚠️ Important
Rather than inventing a suspension type or travel measurement, this page lists the detailed suspension specification as not published by the current manufacturer listing.
🛑 FRONT DRUM + REAR DISC BRAKES
The Panther uses:
FRONT
Drum brake
REAR
Disc brake
The combination provides separate front and rear braking systems for controlled off-road riding.
💡 LED HEADLIGHT + TAIL LIGHT
The Panther includes:
🔦 LED HEADLIGHT
The manufacturer describes the LED headlight as a bright lighting system designed to illuminate the riding path.
🔴 TAIL LIGHT
The rear tail light provides additional visibility.
Lighting does not make this ATV street legal.
🧰 FRONT BUMPER + REAR LUGGAGE RACK
The Panther includes practical utility equipment:
🛡️ FRONT BUMPER
Provides additional front-end protection during normal recreational use.
🧰 REAR LUGGAGE RACK
Provides a convenient place for suitable lightweight gear.
Always follow the manufacturer's load limitations.
⚙️ BUILT-IN BALANCE SHAFT
The 177.3cc engine features a built-in balance shaft.
Its purpose is to counteract unbalanced dynamic forces within the engine.
Result:
Less vibration
Smoother engine operation
More comfortable riding experience
This is one of the Panther's key mechanical differences from simpler engine designs.
📊 FULL TECHNICAL SPECIFICATIONS
| Specification | X-PRO Panther 200 Sports ATV |
|---|---|
| Model | X-PRO Panther 200 |
| Model Number | ATV-P010 |
| Actual Engine Displacement | 177.3cc |
| Engine Type | 4-stroke |
| Cylinder Arrangement | Single cylinder |
| Cooling System | Air cooled |
| Balance Shaft | Yes |
| Engine Power | Not published by current manufacturer page |
| Motor Torque | Not published by current manufacturer page |
| Nominal Motor Power | Not applicable — gasoline engine |
| Peak Motor Power | Not published |
| Transmission | Automatic with Reverse |
| Reverse | Yes |
| Ignition | CDI |
| Start System | Not separately specified on current page |
| Starter Battery | 12V / 9Ah |
| Propulsion Battery | Not applicable |
| Charging Time | Not applicable |
| Fuel Type | Gasoline |
| Fuel Tank Capacity | Not published on current page |
| Top Speed | 40+ MPH |
| Front Brake | Drum |
| Rear Brake | Disc |
| Front Suspension | Not fully specified on current page |
| Rear Suspension | Not fully specified on current page |
| Front Tire | 23×7-10 |
| Rear Tire | 22×10-10 |
| Tire Type | Not specified |
| Wheel Material | Not specified on current specification table |
| Frame | Large frame; material not specified |
| Headlight | LED |
| Tail Light | Yes |
| Front Bumper | Yes |
| Rear Luggage Rack | Yes |
| Overall Length | 68" |
| Overall Width | 41" |
| Overall Height | 43" |
| Seat Height | 33" |
| Minimum Ground Clearance | 4.33" |
| Wheelbase | 43.5" |
| Net Weight | 330 lbs |
| Gross Weight | 363 lbs |
| Carton Size | 58×34×32" |
| Maximum Load Capacity | Not published on current manufacturer specification table |
| Street Legal | No |
| California | Not legal for sale |
| Assembly | Required |
These are the specifications currently displayed on the manufacturer's Panther ATV-P010 page.
🏁 PERFORMANCE
⚡ ENGINE
177.3cc
4-stroke
Single cylinder
Air cooled
Built-in balance shaft
The balance shaft is intended to reduce engine vibration and improve smoothness.
The manufacturer does not currently publish a separate kW/HP or torque specification for the Panther, so no unsupported number is included.
🔄 TRANSMISSION
Automatic + Reverse
The automatic transmission simplifies operation, while reverse makes tight maneuvers easier.
🚀 TOP SPEED
40+ MPH
The actual top speed varies with rider weight and road/surface conditions.
⛽ RANGE
The current manufacturer specification table does not publish a fixed fuel range or fuel-economy figure.
Because this is gasoline powered, actual range depends on:
-
Fuel capacity
-
Rider weight
-
Speed
-
Terrain
-
Throttle use
-
Riding style
-
Conditions
A specific miles-per-tank figure should therefore not be advertised as guaranteed.
⛰️ HILL CLIMBING
The 177.3cc engine, automatic transmission and large 23×7-10 / 22×10-10 tires provide a platform suitable for appropriate recreational inclines.
However, X-PRO does not publish a maximum hill-grade percentage.
Avoid steep terrain beyond the rider's experience or the ATV's capability.
🌲 TERRAIN CAPABILITY
The Panther is suited to appropriate:
-
Dirt
-
Gravel
-
Grass
-
Private property
-
Designated OHV areas
-
Recreational off-road trails
It is not a road-legal ATV and should not be used on public streets or highways.
🆚 PANTHER 200 VS COMPETITORS
For a meaningful comparison, the closest alternatives are other automatic 200cc-class ATVs with reverse and large tires.
| Specification | X-PRO Panther 200 | X-PRO 200 Utility | HHH 200cc Sports ATV |
|---|---|---|---|
| Actual Engine Displacement | 177.3cc | 200cc class | 200cc |
| Engine Type | 4-stroke, single-cylinder | 4-stroke | 4-stroke |
| Cooling | Air cooled | Air cooled | Air cooled |
| Balance Shaft | Yes | Not specified | Not specified |
| Transmission | Automatic + Reverse | Automatic + Reverse | Automatic D+N+R |
| Top Speed | 40+ MPH | Not published | 40+ MPH |
| Front Tire | 23×7-10 | 23×7-10 | 23×7-10 |
| Rear Tire | 22×10-10 | 22×10-10 | 22×10-10 |
| Front Brake | Drum | Not confirmed | Not confirmed |
| Rear Brake | Disc | Not confirmed | Not confirmed |
| Starter Battery | 12V/9Ah | Not confirmed | Not confirmed |
| Seat Height | 33" | 31.89" | Not published |
| Ground Clearance | 4.33" | 5.32" | Not published |
| Wheelbase | 43.5" | 43.9" | Not published |
| Overall Dimensions | 68" × 41" × 43" | 69.3" × 42.1" × 43.3" | Not published |
| Net Weight | 330 lbs | Not confirmed | Not confirmed |
| Gross Weight | 363 lbs | Not confirmed | Not confirmed |
| Max Load | Not published | 198 lbs | Not published |
| LED Headlight | Yes | Yes | Yes |
| Tail Light | Yes | Yes | Yes |
| Front Rack | No front rack listed | Yes | Yes |
| Rear Rack | Yes | Yes | Yes |
| Front Bumper | Yes | Yes | Yes |
| Reverse | Yes | Yes | Yes |
The X-PRO 200 Utility listing is described separately as a utility-oriented 200cc-class ATV with large 23"/22" tires and utility racks, while the Panther emphasizes its automatic transmission, balance-shaft engine, LED lighting and sports-oriented chassis.
The HHH 200cc Sports ATV is listed with a 200cc engine, automatic D+N+R transmission, 40+ MPH top speed and 23×7-10 / 22×10-10 tires.
🐆 Why choose the Panther?
The Panther's strongest selling points are:
177.3cc balance-shaft engine
Automatic transmission
Reverse
40+ MPH advertised top speed
23×7-10 front tire
22×10-10 rear tire
33" seat height
4.33" minimum ground clearance
43.5" wheelbase
LED headlight
Rear luggage rack
Front bumper
🧑 BUILT FOR FULL-SIZE RIDING
The Panther is not a small children's quad.
Its:
33-INCH SEAT HEIGHT
41-INCH WIDTH
68-INCH LENGTH
and:
330-LB NET WEIGHT
create a substantially larger platform.
X-PRO's safety guidance states that children under 16 should not operate an adult ATV. The Panther should therefore be treated as an adult ATV and operated only by riders who meet applicable age, size, training and legal requirements.
🛡️ TRUST & SUPPORT
🔐 SECURE CHECKOUT
Complete your purchase through a secure checkout designed to protect payment information.
🇺🇸 U.S. DEALER & SUPPORT
X-PRO states that it has operated in the U.S. powersports market for 20+ years as a licensed motorcycle dealer.
🏭 U.S. WAREHOUSES
X-PRO operates company-owned warehouse operations in:
California
Texas
🔧 OEM PARTS
X-PRO maintains OEM replacement parts for its vehicle lineup through its U.S. operations.
🔍 QUALITY CHECK
Every ATV should be inspected after delivery and assembly before the first ride.
Check:
-
Steering
-
Wheels
-
Brakes
-
Tires
-
Chain
-
Suspension
-
Engine oil
-
Throttle
-
Controls
-
Lighting
-
Fasteners
🛠️ WARRANTY
X-PRO's current product-line warranty information states:
1-YEAR FRAME WARRANTY
Against qualifying structural manufacturing defects.
90-DAY PARTS WARRANTY
Against qualifying manufacturing defects.
Normal wear items such as tires, brake components, chains and bulbs are excluded.
Warranty claims are handled through X-PRO's U.S.-based support team. (XProUSA)
🚚 SHIPPING & DELIVERY
The product page indicates that shipping is calculated at checkout.
Because this is a large ATV shipped as freight, customers should:
-
Provide an accurate phone number.
-
Coordinate with the freight carrier.
-
Ensure the delivery location is accessible.
-
Inspect the carton and ATV before accepting delivery.
-
Photograph visible shipping damage.
-
Record damage on the delivery paperwork.
🔧 ASSEMBLY
SOME ASSEMBLY REQUIRED
X-PRO states that assembly for most ATVs includes items such as:
-
Handlebar brackets
-
All four wheels
-
Front/rear racks where included
-
Rear shock
-
Battery
Exact requirements can vary by model.
If you are not comfortable performing mechanical assembly, professional assembly is recommended.
🛢️ BEFORE YOUR FIRST RIDE
Before operating the Panther:
🛢️ CHECK ENGINE OIL
Verify the correct engine-oil level before operation.
🔩 CHECK FASTENERS
Inspect critical bolts and mounting hardware.
🛞 CHECK TIRES
Verify tire condition and pressure.
🛑 CHECK BRAKES
Test both the front drum and rear disc.
🔗 CHECK THE DRIVETRAIN
Inspect the chain and drivetrain components.
🧭 CHECK STEERING
Verify smooth steering movement and secure handlebar mounting.
❓ FREQUENTLY ASKED QUESTIONS
⛽ Does the Panther need to be charged?
No.
The Panther is a 177.3cc gasoline ATV.
Its 12V/9Ah battery is a starter battery, not a propulsion battery.
There is no electric charging time.
🚀 How fast is the Panther?
The manufacturer's published top speed is:
40+ MPH
Actual speed varies with rider weight and road/surface conditions.
🔋 What is the battery?
The starter battery is:
12V / 9Ah
It starts the gasoline engine and does not power the ATV like an electric vehicle battery.
⛽ What is the range?
X-PRO does not publish a fixed miles-per-tank range for the current Panther specification.
Actual range varies according to fuel consumption, speed, terrain, rider weight and throttle use.
⚡ How much horsepower does it have?
X-PRO currently specifies the engine as 177.3cc, but does not publish a current horsepower/kW figure on the Panther specification table.
Rather than use an unsupported number, this product page identifies the verified 177.3cc displacement.
💪 What is the torque?
A current torque figure is not published by X-PRO for the Panther.
No torque number is therefore claimed.
🔄 Does it have reverse?
Yes.
The transmission is:
Automatic with Reverse
🛞 What size are the tires?
Front: 23×7-10
Rear: 22×10-10
🛑 What brakes does it have?
Front: Drum
Rear: Disc
🧍 How tall is the seat?
33 inches
This is a full-size ATV seat height, not a small youth-ATV configuration.
⛰️ Can it climb hills?
The Panther is suitable for appropriate recreational inclines, but X-PRO does not publish a maximum hill-grade percentage.
Riders should avoid slopes or terrain beyond their training and experience.
🌲 What terrain can it handle?
Suitable terrain includes:
-
Dirt
-
Grass
-
Gravel
-
Private property
-
Designated OHV trails
Avoid paved roads and terrain beyond the ATV's capabilities.
🌧️ Is it waterproof?
No waterproof/IP rating is published.
The Panther should not be advertised as waterproof or submersible.
Avoid unnecessary water exposure and high-pressure washing around mechanical and electrical components.
🪪 Is it street legal?
No.
The manufacturer states that the Panther is not legal for sale in California and its safety guidance says ATVs should not be driven on paved roads.
Always check your local ATV registration, land-use and licensing requirements before riding.
👨👩👧 Can a child ride it?
X-PRO's safety guidance states:
Do not allow a child under 16 to operate or ride an adult ATV.
The Panther is a full-size adult ATV.
🔧 Does it require assembly?
Yes.
Some assembly is required after delivery, including components such as wheels, handlebar brackets, racks where included, rear shock and battery.
📦 WHAT'S IN THE BOX?
The Panther is shipped as an ATV requiring assembly.
The manufacturer identifies assembly components for most ATVs as including:
-
X-PRO Panther ATV
-
Handlebar brackets
-
Four wheels
-
Rear luggage rack
-
Rear shock
-
Starter battery
-
Required assembly hardware
-
Owner documentation
Exact contents can vary by production configuration.
⚠️ HELMET NOT INCLUDED
Always use an appropriate helmet and protective riding equipment.
X-PRO specifically recommends:
-
Helmet
-
Eye protection
-
Boots
-
Gloves
-
Long pants
-
Long-sleeved shirt
The manufacturer also recommends hands-on ATV safety training.
🐆 THE PANTHER 200
BIG TIRES. AUTOMATIC REVERSE. FULL-SIZE ATTITUDE.
⚡ 177.3cc 4-STROKE ENGINE
🔄 AUTOMATIC TRANSMISSION + REVERSE
🚀 40+ MPH TOP SPEED
🔋 12V / 9Ah STARTER BATTERY
🛞 23×7-10 FRONT TIRES
🛞 22×10-10 REAR TIRES
🪑 33" SEAT HEIGHT
📏 68" × 41" × 43"
🏁 43.5" WHEELBASE
⛰️ 4.33" MINIMUM GROUND CLEARANCE
🛑 FRONT DRUM + REAR DISC
💡 LED HEADLIGHT + TAIL LIGHT
🧰 REAR LUGGAGE RACK
🛡️ FRONT BUMPER
⚙️ BUILT-IN BALANCE SHAFT
🏁 TAKE THE TRAIL SERIOUSLY
The X-PRO Panther 200 brings together a full-size chassis, 177.3cc 4-stroke engine, automatic transmission with reverse, large 23×7-10 and 22×10-10 tires, LED lighting and practical cargo equipment.
Its 68-inch length, 41-inch width, 33-inch seat height, 43.5-inch wheelbase and 4.33-inch minimum ground clearance give it the proportions of a full-size recreational ATV.
Choose the Panther when you want a larger ATV with automatic control, reverse and serious off-road presence.
Big tires. Easy operation. Full-size adventure.
