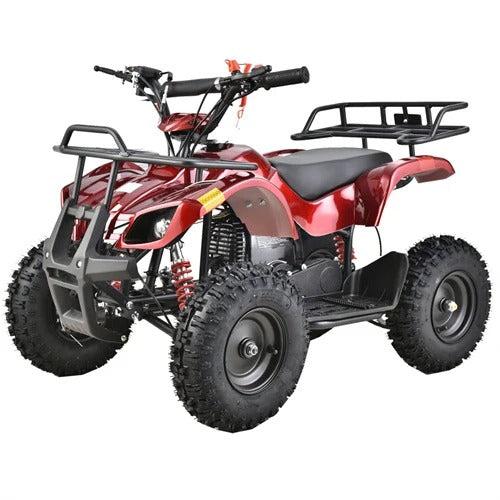

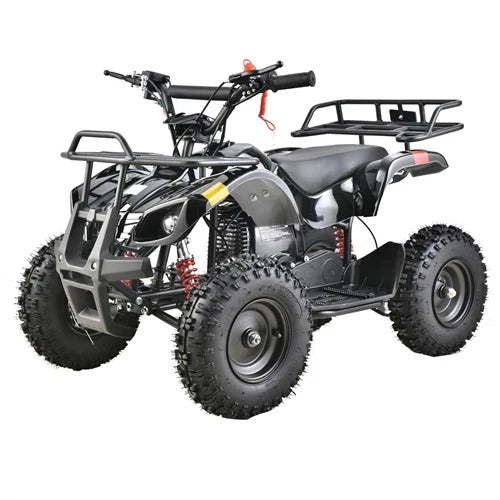

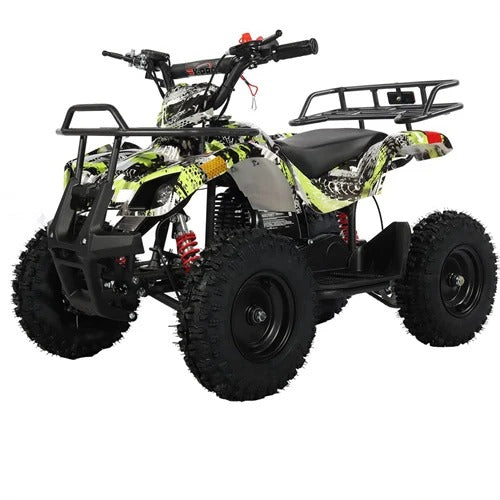

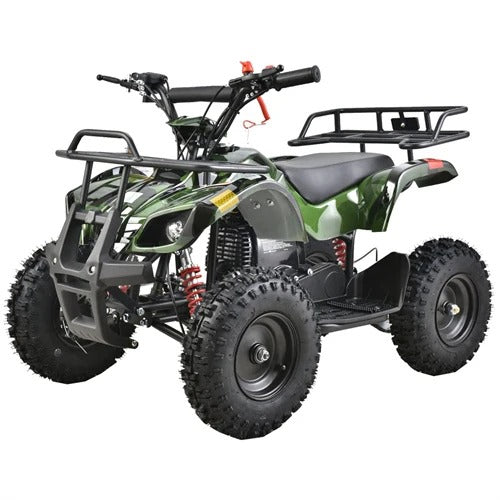

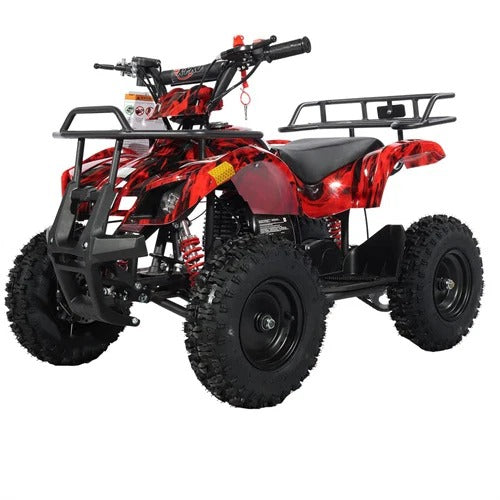

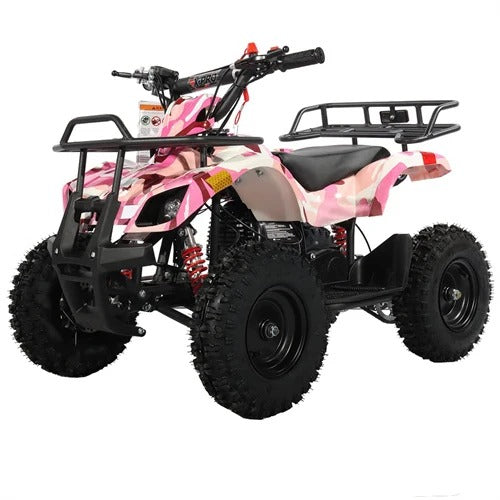

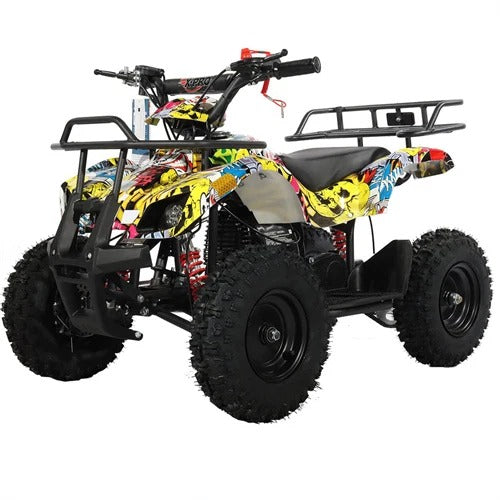

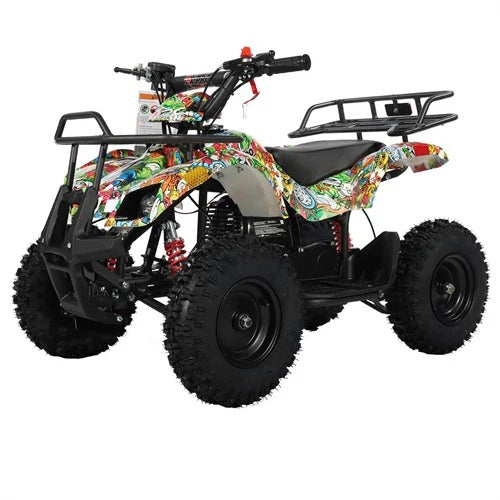

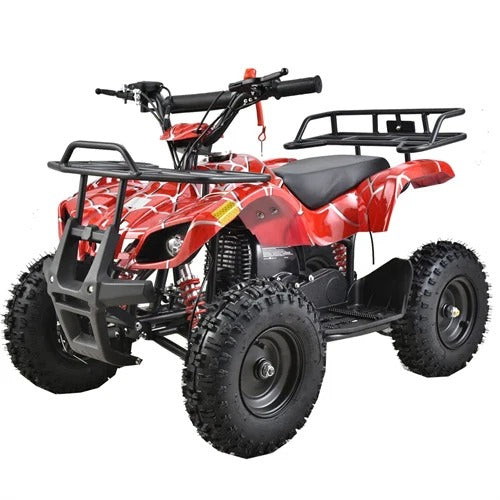

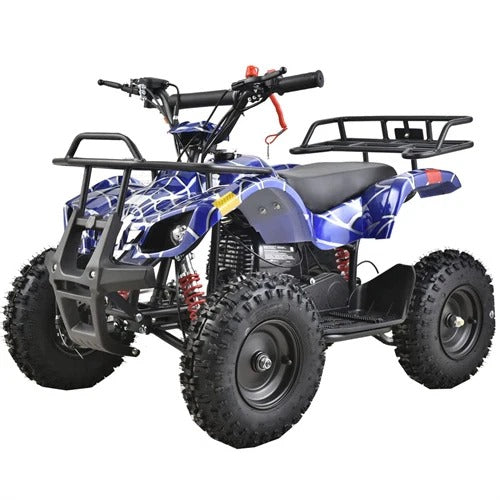

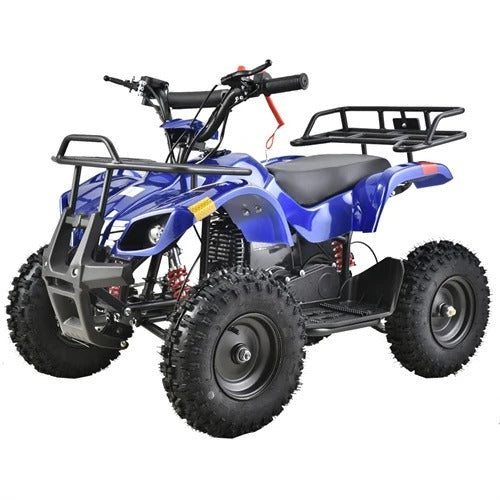

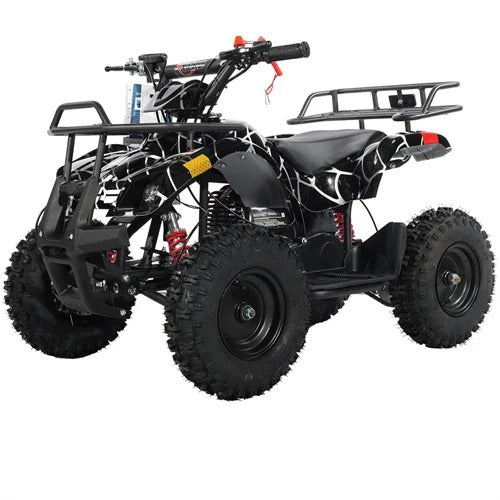

🏁 X-PRO SCOUT 40cc KIDS ATV
THE SIMPLE WAY INTO GAS-POWERED ATV RIDING
The X-PRO Scout 40cc is a compact gas-powered ATV built around a 40cc single-cylinder, 4-stroke, air-cooled engine, chain transmission and pull start.
With 10–15 MPH advertised top speed, 4.10-6 tires, front and rear disc brakes, a 22.46-inch seat height, and a 1.8L fuel tank, the Scout is designed for supervised recreational off-road riding by appropriately sized young riders.
⚡ 40cc 4-STROKE POWER
🔥 SIMPLE GASOLINE PERFORMANCE
The Scout uses a:
40cc • Single-Cylinder • 4-Stroke • Air-Cooled Engine
The current X-PRO listing specifies a 40cc 4-stroke engine and 10–15 MPH maximum speed, depending on rider weight and riding conditions. (XProUSA)
Unlike a 2-stroke engine, the 4-stroke configuration does not require gasoline/oil mixing.
💪 POWER & TORQUE
The current X-PRO product page does not publish a separate horsepower, wattage or torque figure for the Scout 40cc.
Historical specifications for the same ATV-Z04 model identify approximately 0.9kW at 6,500 RPM and 1.6Nm at 5,000 RPM. Because those figures are not displayed on the current manufacturer listing, they should be treated as historical ATV-Z04 specifications rather than current headline specifications.
🔗 CHAIN TRANSMISSION
The Scout uses a:
CHAIN DRIVE TRANSMISSION
Chain drive provides a straightforward mechanical power-transfer system for this compact ATV.
The current manufacturer specification lists:
Transmission: Chain
🪢 PULL START
The Scout uses:
Pull Start
There is no electric starter or EV charging system.
The rider starts the gasoline engine using the recoil starter.
🚀 10–15 MPH ADVERTISED TOP SPEED
The manufacturer lists:
10–15 MPH
Actual speed depends on:
-
Rider weight
-
Riding surface
-
Terrain
-
Conditions
-
Throttle use
For young riders, speed should always be appropriate to their age, experience and riding environment.
🛑 FRONT + REAR DISC BRAKES
The Scout features:
Front
Disc brake
Rear
Disc brake
Having disc brakes at both ends provides a straightforward braking setup for a compact recreational ATV.
Always inspect brake operation before every ride.
🛞 6-INCH-CLASS TIRES
The Scout uses:
Front
4.10-6
Rear
4.10-6
These compact tires are designed around the ATV's youth-oriented chassis.
The current manufacturer page specifically lists 4.10-6 front and rear tires.
🪑 22.46-INCH SEAT HEIGHT
The Scout has a:
22.46-inch seat height
The padded seat and compact chassis are designed to provide a manageable riding position for appropriately sized young riders.
⛽ 1.8-LITER FUEL TANK
The Scout carries:
1.8 liters of gasoline
The current manufacturer listing specifies a 1.8L fuel capacity.
X-PRO does not publish a fixed mileage range for the Scout because fuel consumption varies with rider weight, speed, terrain and throttle use.
🧰 FRONT + REAR LUGGAGE RACKS
The Scout includes:
Front luggage rack
Rear luggage rack
The racks provide convenient space for appropriate lightweight gear.
Do not exceed the manufacturer's maximum load rating.
🛡️ FRONT BUMPER
A front bumper is included to provide additional protection around the front of the ATV during normal recreational use.
💡 DECORATIVE HEADLIGHT
The Scout includes a headlight housing, but X-PRO identifies the headlight as:
Decorative / non-functional
The ATV should therefore be used during appropriate daylight conditions rather than being marketed as a nighttime vehicle.
🛋️ PADDED SEAT
The Scout uses a padded seat with a plastic-leather covering and foam padding.
The 22.46-inch seat height and compact body help create a manageable riding position for young riders who fit the ATV.
📏 COMPACT ATV DIMENSIONS
The ATV-Z04 specification lists:
42" overall length
26.8" overall width
28.7" overall height
22.46" seat height
27.5" wheelbase
The compact dimensions make the Scout substantially smaller than full-size youth and adult ATVs.
📊 FULL TECHNICAL SPECIFICATIONS
| Specification | X-PRO Scout 40cc / ATV-Z04 |
|---|---|
| Model | X-PRO Scout 40cc |
| Model Number | ATV-Z04 |
| Previous URL/Product Name | Eagle 40cc |
| Engine | 40cc |
| Engine Type | 4-stroke |
| Cylinder Arrangement | Single cylinder |
| Cooling | Air cooled |
| Nominal Motor Power | Not applicable — gasoline engine |
| Peak Motor Power | Not separately published by current manufacturer page |
| Historical ATV-Z04 Power Figure | 0.9kW / 6,500 RPM |
| Historical ATV-Z04 Torque Figure | 1.6Nm / 5,000 RPM |
| Transmission | Chain |
| Start System | Pull start |
| Fuel Type | Gasoline |
| Fuel Tank | 1.8L |
| Top Speed | 10–15 MPH |
| Front Brake | Disc |
| Rear Brake | Disc |
| Front Tire | 4.10-6 |
| Rear Tire | 4.10-6 |
| Front Suspension | Not specified on current manufacturer page |
| Rear Suspension | Not specified on current manufacturer page |
| Frame | Large frame; material not specified on current manufacturer page |
| Seat Height | 22.46" |
| Overall Length | 42" |
| Overall Width | 26.8" |
| Overall Height | 28.7" |
| Wheelbase | 27.5" |
| Net Weight | 79 lbs |
| Gross Weight | 93 lbs |
| Maximum Load | 143 lbs |
| Package Size | 40" × 22" × 19" |
| Front Rack | Yes |
| Rear Rack | Yes |
| Front Bumper | Yes |
| Headlight | Decorative / non-functional |
| Battery | Not applicable |
| Charging Time | Not applicable |
| IP / Waterproof Rating | Not specified |
| EPA Standard | Whole bike passed EPA standard according to manufacturer listing |
| CARB | Not legal for sale in California |
| Street Legal | No — off-road use |
| Assembly | Required |
The current X-PRO listing confirms the core ATV-Z04 specifications including 40cc engine, chain transmission, pull start, 10–15 MPH speed, disc brakes, 4.10-6 tires, 22.46-inch seat height, 79 lb net weight, 93 lb gross weight and 1.8L fuel capacity.
🏁 PERFORMANCE
⚙️ ENGINE
40cc
4-stroke
Single cylinder
Air cooled
The current manufacturer page does not give a current nominal/peak wattage rating because this is a gasoline engine.
Historical ATV-Z04 specifications list 0.9kW at 6,500 RPM and 1.6Nm at 5,000 RPM.
🔗 DRIVETRAIN
Chain transmission
The mechanical chain drive transfers engine power to the wheels.
🪢 STARTING
Pull start
No electric starter and no charging system are required.
🚀 TOP SPEED
10–15 MPH
Actual speed varies with rider weight, terrain and riding conditions.
⛽ FUEL & RANGE
1.8L fuel tank
The manufacturer does not publish a specific miles-per-tank figure.
Actual range depends on throttle use, terrain, rider weight and riding conditions.
⛰️ HILL CLIMBING
The Scout is a compact 40cc ATV intended for recreational riding.
It should be used on terrain appropriate for the rider and vehicle. The manufacturer does not publish a maximum hill-grade rating.
For young riders, avoid steep, loose, rocky or unpredictable terrain.
🌲 TERRAIN CAPABILITY
The Scout is intended for:
-
Private land
-
Suitable outdoor recreational areas
-
Flat or moderately uneven dirt
-
Grass
-
Appropriate designated off-road areas
It is not a technical off-road ATV and should not be marketed as capable of climbing difficult hills.
🆚 SCOUT 40cc VS COMPETITORS
| Specification | X-PRO Scout 40 / ATV-Z04 | X-PRO Thunder 40 / ATV-Z06 | X-PRO Eagle 110 / ATV-P001 |
|---|---|---|---|
| Engine | 40cc | 40cc | 110cc |
| Engine Type | 4-stroke | 4-stroke | 4-stroke |
| Cylinder | Single | Single | Single |
| Cooling | Air cooled | Air cooled | Air cooled |
| Power | Historical 0.9kW / 6,500 RPM | 0.9kW / 6,500 RPM | 4.8kW / 7,500 RPM |
| Torque | Historical 1.6Nm / 5,000 RPM | 1.6Nm / 5,000 RPM | 7.0Nm / 5,500 RPM |
| Transmission | Chain | Fully automatic chain drive | Fully automatic |
| Start | Pull start | Pull start | Electric start |
| Reverse | No | No | No |
| Top Speed | 10–15 MPH | 10–15 MPH | 35+ MPH |
| Fuel Tank | 1.8L | 1L | 2L |
| Front Brake | Disc | Hydraulic disc | Drum |
| Rear Brake | Disc | Hydraulic disc | Hydraulic disc |
| Front Tire | 4.10-6 | 4.10-6 | 145/70-6 |
| Rear Tire | 4.10-6 | 4.10-6 | 145/70-6 |
| Seat Height | 22.46" | 22.46" | 21.26" |
| Maximum Load | 143 lbs* | 70 lbs | 143 lbs |
| Net Weight | 79 lbs | 76 lbs | 168 lbs |
| Gross Weight | 93 lbs | 95 lbs | 200 lbs |
| Wheelbase | 27.5" | 27.5" | 33" |
| Front Rack | Yes | Yes | Not specified |
| Rear Rack | Yes | Yes | Yes |
| Headlight | Decorative | Decorative | Functional |
| Remote Kill | No | No | Yes |
| Speed Governor | Not specified on current page | Adjustable | Adjustable |
| Primary Use | Youth off-road | Youth off-road | Youth off-road |
| California | Not legal for sale | Not legal for sale | Not permitted |
*The current X-PRO Scout/ATV-Z04 listing displays 143 lbs. Older ATV-Z04 documentation and third-party listings show 70 lbs, so buyers should rely on the current manufacturer's listing or confirm the applicable production specification before exceeding 70 lbs.
Scout vs Thunder 40
The Thunder 40 is the closest current X-PRO alternative. Both use a 40cc 4-stroke engine, 4.10-6 tires and 22.46-inch seat height.
The Thunder adds a more explicitly documented fully automatic chain drive, adjustable speed governor, handlebar kill switch and hydraulic disc brakes front and rear, while the Scout uses the older/simple chain transmission and disc-brake setup.
Scout vs Eagle 110
The Eagle 110 is the natural step-up for a larger or more experienced young rider. It moves from 40cc to 110cc, from 10–15 MPH to 35+ MPH, and from pull start to electric start, with a 4.8kW / 7,500 RPM engine and 7.0Nm / 5,500 RPM torque.
👨👩👧 WHY CHOOSE THE SCOUT 40?
🔗 SIMPLE CHAIN DRIVE
A straightforward drivetrain designed around a compact 40cc ATV.
🪢 PULL START
No complicated electronic starting system.
🛑 FRONT + REAR DISC BRAKES
Disc brakes are fitted at both ends.
🛞 4.10-6 TIRES
Compact tires designed for the ATV's small chassis.
🪑 22.46-INCH SEAT
A manageable seating height for appropriately sized young riders.
🧰 FRONT + REAR RACKS
Useful storage for suitable lightweight gear.
🧱 LARGE FRAME
The manufacturer describes the ATV-Z04 as having a large frame for its 40cc class.
🛡️ TRUST & SUPPORT
🔐 SECURE CHECKOUT
Complete your purchase through a secure checkout designed to protect payment information.
🇺🇸 ESTABLISHED U.S. DEALER
X-PRO states that it has operated in the U.S. powersports market for 20+ years as a licensed U.S. dealer. Its current support information lists company-owned warehouse operations in California and Texas.
🔧 OEM PARTS SUPPORT
X-PRO maintains OEM replacement-parts support for its ATV product line through its U.S. operations.
🔍 PRE-RIDE INSPECTION
Before riding, inspect:
-
Brake operation
-
Tire condition
-
Tire pressure
-
Wheel hardware
-
Steering
-
Chain
-
Suspension components
-
Fuel system
-
Engine oil
-
Throttle
-
Kill switch
-
All mounting bolts
🛠️ WARRANTY
Current X-PRO product information advertises manufacturer warranty support, while historical/current X-PRO 40cc listings specify 1-year frame coverage and 90-day parts coverage for manufacturing defects.
Normal wear, misuse, accidents and unauthorized modifications are generally excluded. Confirm the warranty terms applicable to the exact unit before purchase.
📦 SHIPPING & ASSEMBLY
The Scout requires assembly.
The manufacturer states that assembly for most ATVs includes items such as:
-
Handlebar brackets
-
All four wheels
-
Front rack
-
Rear rack, when included
-
Rear shock
-
Battery, where applicable
The exact assembly requirements can vary by model.
📦 PACKAGE SIZE
40" × 22" × 19"
⚖️ GROSS SHIPPING WEIGHT
93 lbs
🛢️ BEFORE THE FIRST RIDE
Because this is a gasoline-powered 4-stroke ATV, perform the manufacturer's required pre-ride checks before starting.
Check the engine oil.
Check all bolts and fasteners.
Check both brakes.
Check the chain.
Check tire pressure.
Check steering.
Check the throttle.
Check the fuel system.
Do not operate the ATV until it has been correctly assembled and inspected.
❓ FREQUENTLY ASKED QUESTIONS
⛽ Does the Scout need charging?
No.
The Scout is a 40cc gasoline ATV, not an electric vehicle.
It uses a pull-start gasoline engine, so there is no EV battery or charging time.
🚀 How fast is the Scout?
The manufacturer lists:
10–15 MPH
Actual speed depends on rider weight and riding conditions.
⛽ What is the fuel capacity?
The fuel tank holds:
1.8 liters
The manufacturer does not provide a fixed miles-per-tank range.
⚡ How much power does the engine produce?
The current X-PRO page specifies the engine as 40cc, 4-stroke, single-cylinder and air cooled, but does not currently publish a power or torque figure.
Historical ATV-Z04 specifications list:
0.9kW at 6,500 RPM
1.6Nm at 5,000 RPM
🪢 How does it start?
The Scout uses:
Pull start
There is no electric start.
🔄 Does it have reverse?
No.
The current ATV-Z04 specification lists a chain transmission and does not list a reverse gear.
🛑 What type of brakes does it have?
The Scout uses:
Front disc brake
Rear disc brake
🛞 What size tires does it use?
Both ends use:
4.10-6
🧍 What is the seat height?
22.46 inches
Actual rider fit depends on inseam, footwear and riding posture.
⚖️ What is the maximum load?
The current X-PRO listing displays 143 lbs.
However, older ATV-Z04 documentation lists 70 lbs, so this is a specification that should be confirmed with X-PRO for the exact production unit before relying on the 143 lb figure.
⛰️ Can it climb hills?
The Scout is intended for suitable recreational terrain.
It is not appropriate to represent it as a technical hill-climbing ATV, and X-PRO does not publish a maximum hill-grade rating.
🌲 Where can it be ridden?
The Scout is an off-road ATV intended for appropriate private land and designated off-road riding areas.
Do not ride it on public roads.
🪪 Is it street legal?
No.
The manufacturer states that the ATV-Z04 is not legal for sale in California and is intended for off-road use.
Always verify local ATV laws, registration requirements and permitted riding locations.
🌧️ Is it waterproof?
No IP/waterproof rating is published.
Do not market the Scout as waterproof or submersible.
Avoid unnecessary exposure of the engine, drivetrain and controls to water.
🔧 Does it require assembly?
Yes.
The Scout is shipped with assembly required. X-PRO notes that assembly requirements vary by model.
📦 WHAT'S IN THE BOX?
The Scout's documented equipment includes:
-
X-PRO Scout 40cc ATV
-
40cc 4-stroke engine
-
Chain transmission
-
Pull-start system
-
Front disc brake
-
Rear disc brake
-
4.10-6 front tire
-
4.10-6 rear tire
-
Front luggage rack
-
Rear luggage rack
-
Front bumper
-
Padded seat
-
Decorative headlight
-
Assembly hardware
-
Owner documentation
The manufacturer does not publish a complete item-by-item small-hardware packing list on the current product page.
🏁 THE SCOUT 40cc
SMALLER ENGINE. SIMPLE CONTROLS. CLASSIC ATV EXPERIENCE.
The X-PRO Scout 40cc is designed around the fundamentals:
⚙️ 40cc 4-STROKE ENGINE
🔗 CHAIN TRANSMISSION
🪢 PULL START
🚀 10–15 MPH TOP SPEED
🛑 FRONT + REAR DISC BRAKES
🛞 4.10-6 TIRES
🪑 22.46-INCH SEAT HEIGHT
⛽ 1.8L FUEL TANK
🧰 FRONT + REAR RACKS
🧱 LARGE FRAME
📏 42" × 26.8" × 28.7"
🏆 READY FOR THE TRAIL?
The X-PRO Scout 40cc keeps the formula straightforward: a compact 40cc 4-stroke gasoline engine, chain drive, pull start, front and rear disc brakes, 4.10-6 tires, a 22.46-inch seat height, and 10–15 MPH advertised speed.
It's a practical choice for families looking for a simple gas-powered ATV for appropriate supervised off-road riding.
Choose the Scout 40cc and start with the fundamentals of ATV riding.
Simple controls. Compact dimensions. Classic four-wheel fun.
